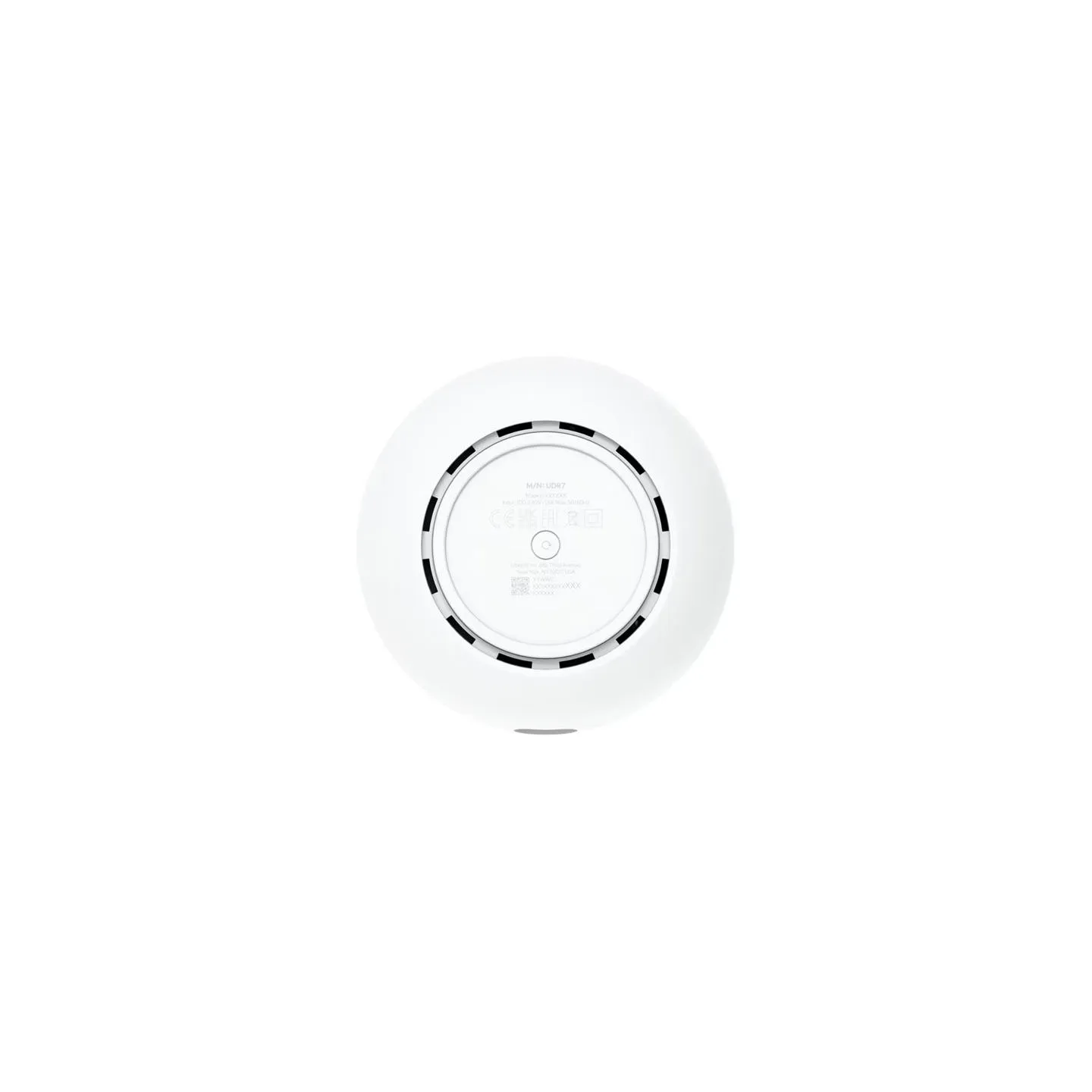

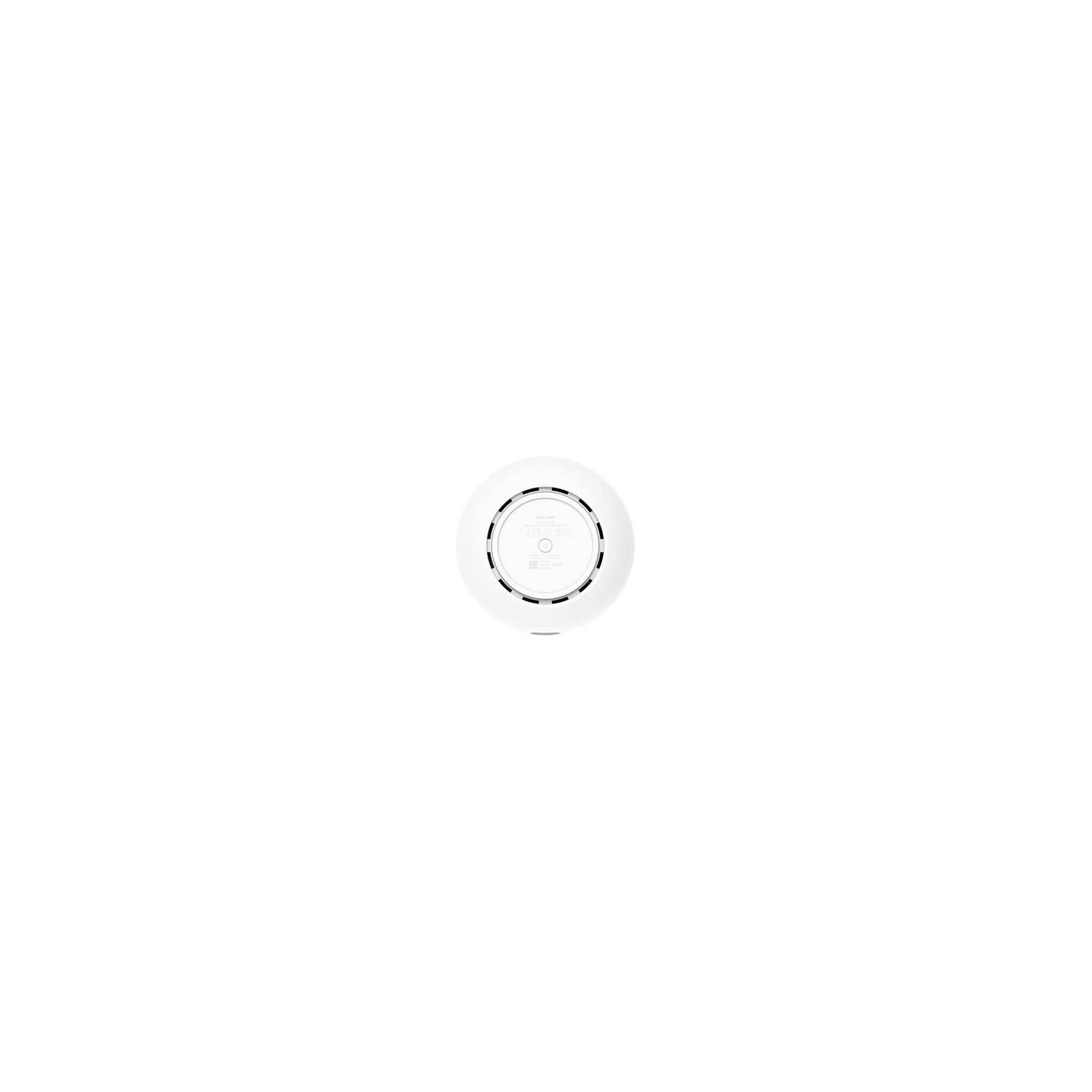

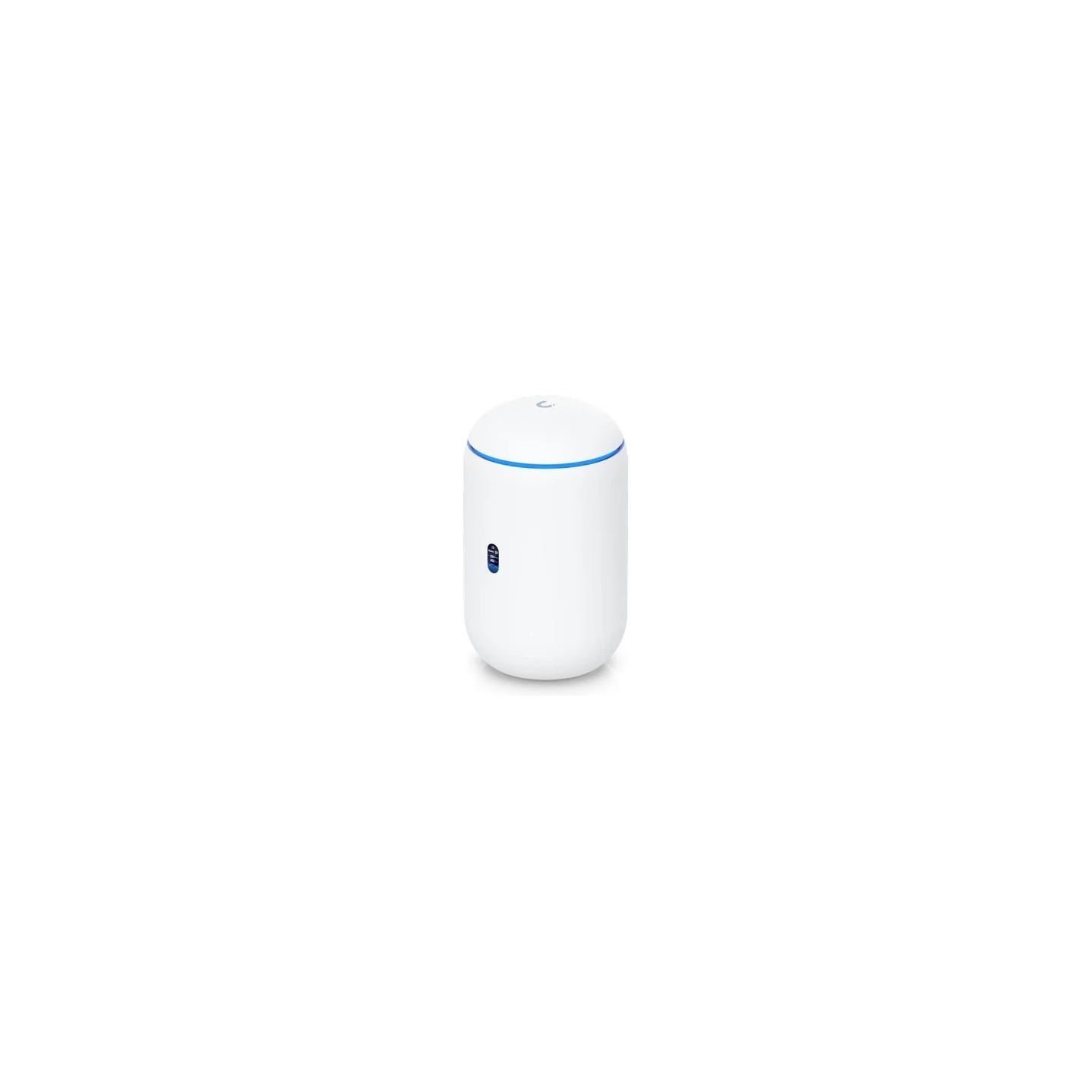

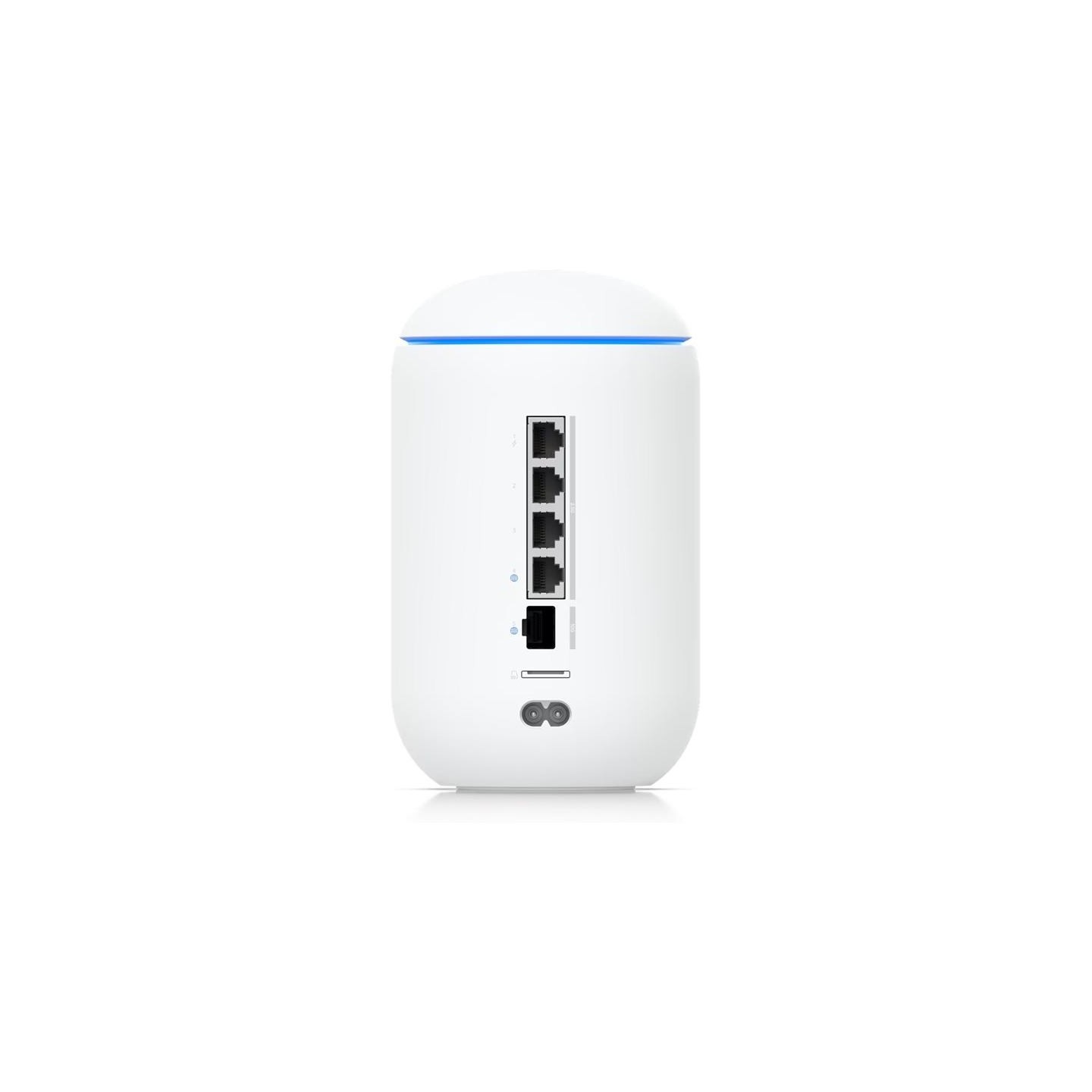

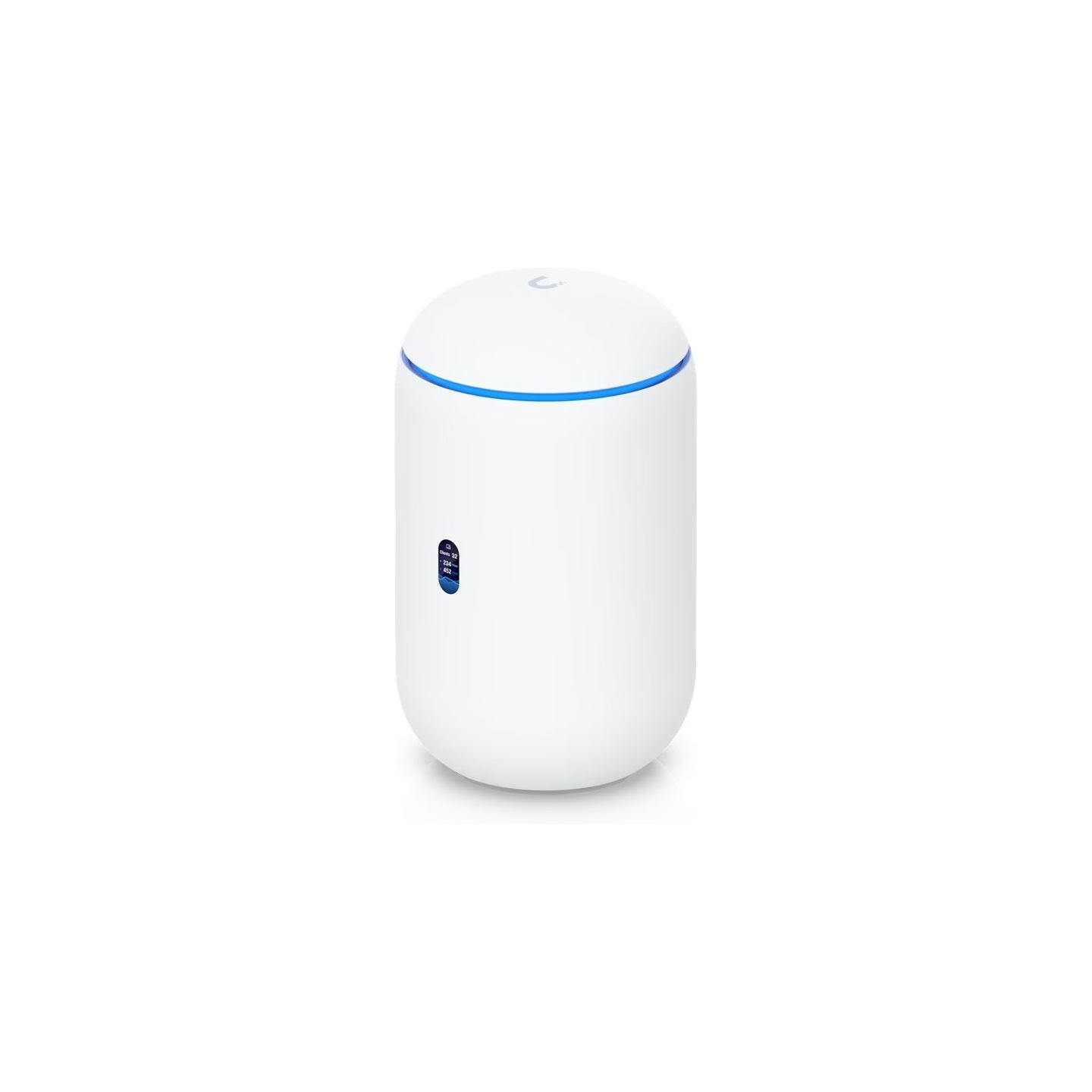

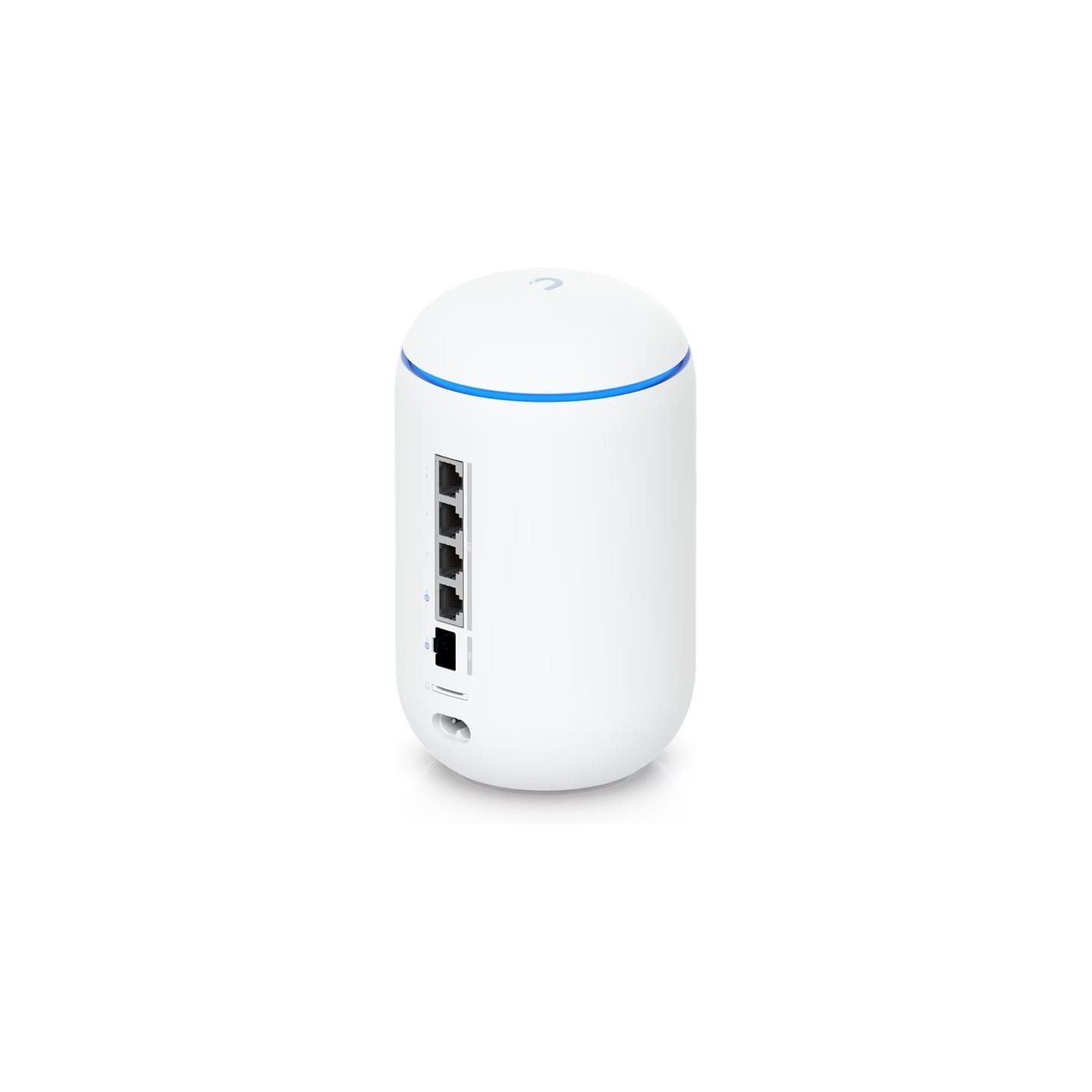

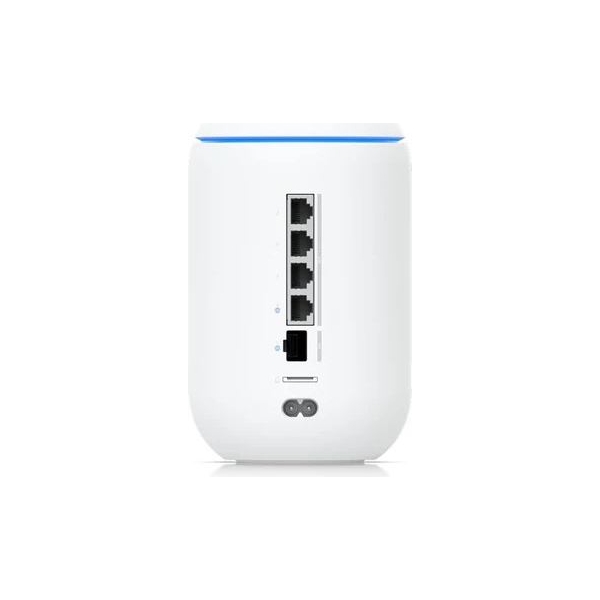

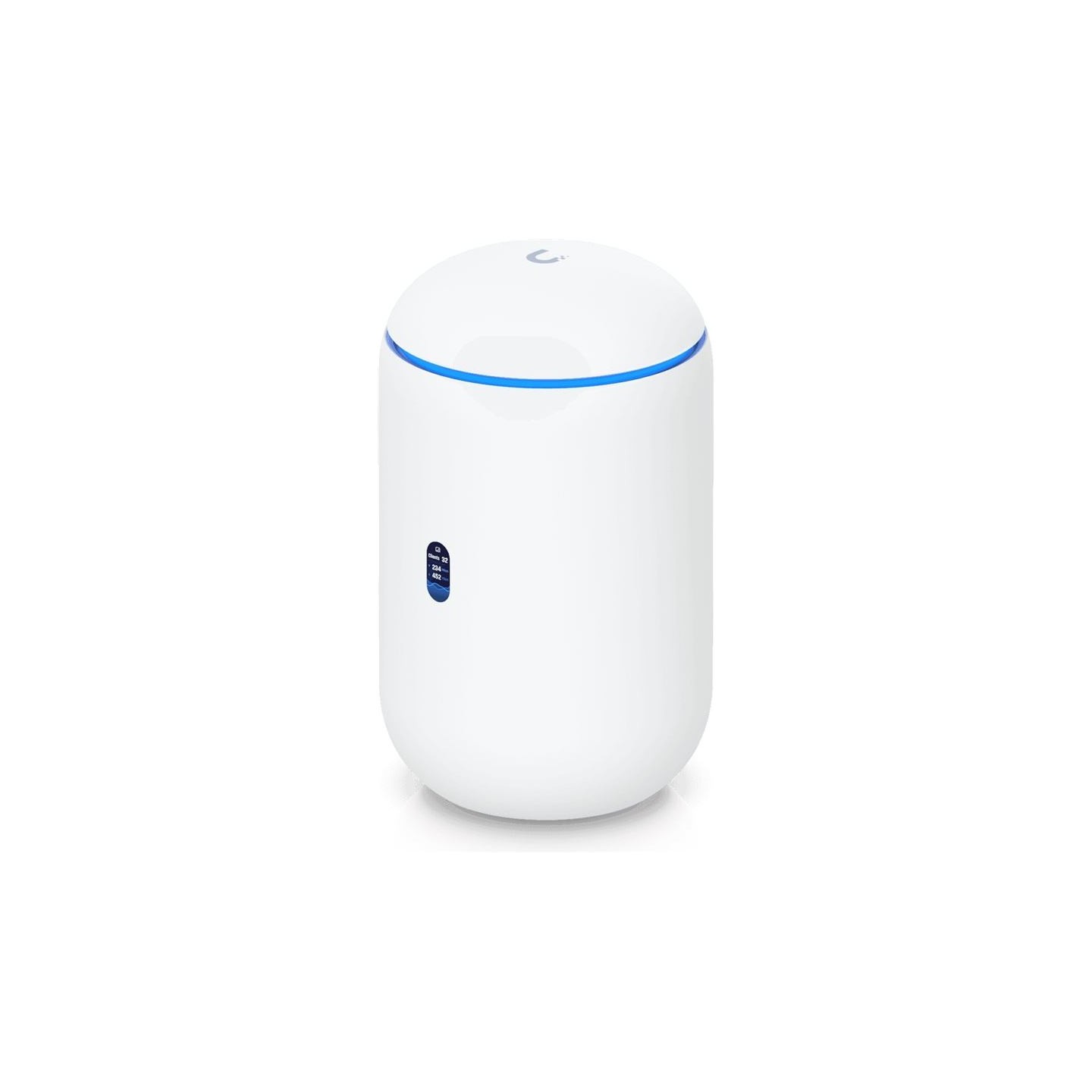

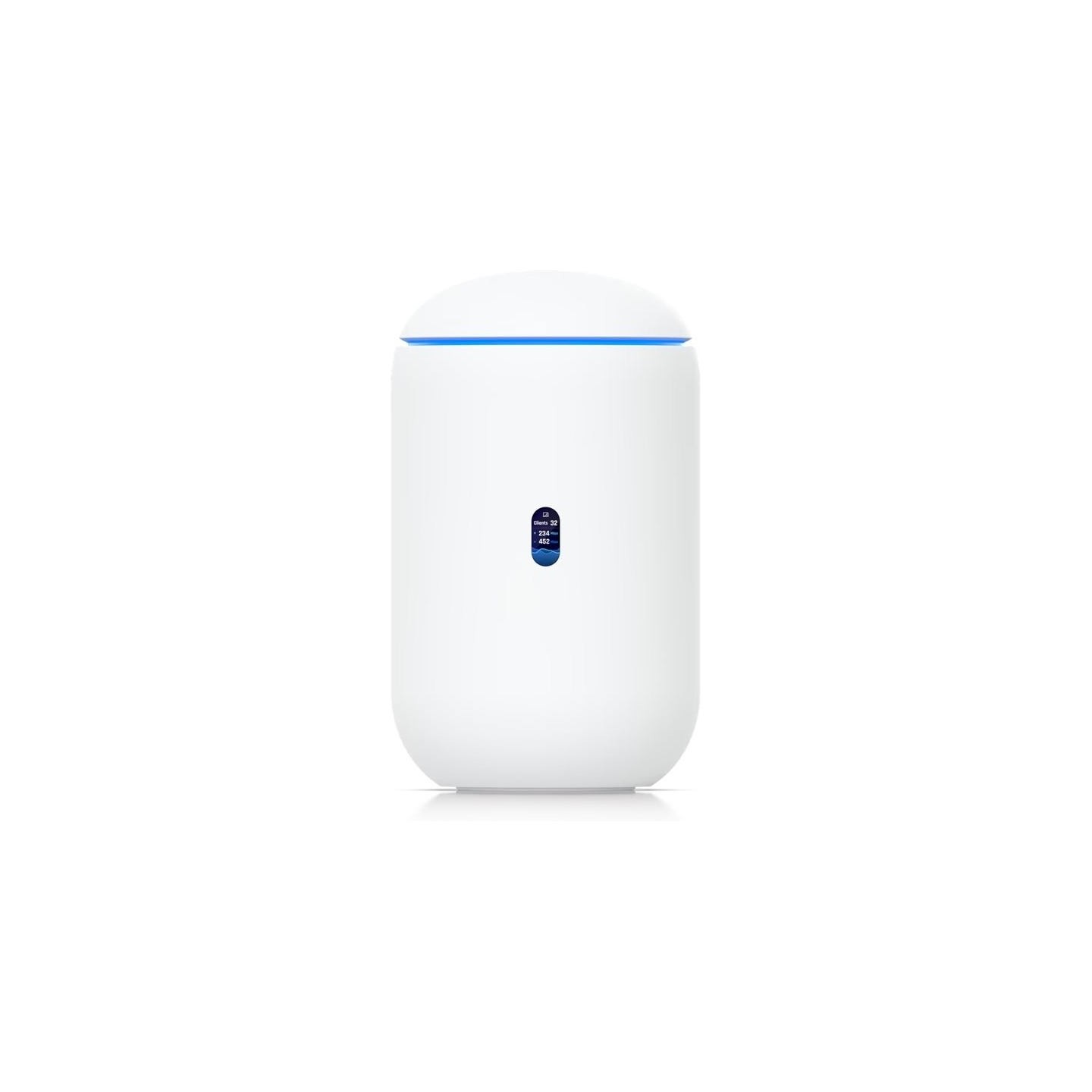

Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
Manufacturer Website:
https://eu.store.ui.com/eu/en/category/cloud-gateways-wifi-integrated/products/udr7
- Category Code
- WRO
- CnCode
- 85176200
- Unit Box Height
- 0.285
- Unit Box Length
- 0.154
- Unit Box Width
- 0.16
- Top Wi-Fi standard
- Wi-Fi 7 (802.11be)
- Wi-Fi band
- Tri-band (2.4 GHz / 5 GHz / 6 GHz)
- Wi-Fi standards
- 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
- WLAN data transfer rate (first band)
- 688 Mbit/s
- WLAN data transfer rate (max)
- 5700 Mbit/s
- WLAN data transfer rate (second band)
- 4300 Mbit/s
- WLAN data transfer rate (third band)
- 5700 Mbit/s
- 3G/4G USB modem compatibility
- No
- DSL WAN
- No
- Ethernet WAN
- Yes
- SIM card slot
- No
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 2500 Mbit/s
- Ethernet LAN interface type
- 2.5 Gigabit Ethernet
- Load balancing system
- Yes
- Maximum coverage
- 160 m²
- Maximum Tx power (2.4 GHz)
- 23 dBmW
- Maximum Tx power (5 GHz)
- 26 dBmW
- Multicast support
- Yes
- Networking standards
- IEEE 802.1Q
- Policy-based routing
- Yes
- VPN server
- Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP
- Compatible memory cards
- MicroSD (TransFlash)
- Ethernet LAN (RJ-45) ports
- 4
- Fiber optic connector
- SFP+
- Memory card slot(s)
- Yes
- USB port
- No
- MIMO
- Yes
- MU-MIMO technology
- Yes
- Quality of Service (QoS) support
- Yes
- Reset button
- Yes
- Web-based management
- Yes
- Filtering
- Yes
- Firewall
- Yes
- MAC address table
- 2000 entries
- Security algorithms
- PPSK/WPA/WPA2/WPA3/WPA-Enterprise/WPA-PSK
- DHCP server
- Yes
- Routing protocols
- OSPF
- Built-in display
- Yes
- Display type
- LCM
- Housing material
- Polycarbonate (PC)
- LED indicators
- Status
- Product colour
- White
- Product type
- Tabletop router
- Cables included
- AC
- Compliance certificates
- CE/Federal Communications Commission (FCC)/Industry Canada (IC)
- Manual
- Yes
- Antenna design
- Internal
- Antenna gain level (max)
- 7 dBi
- Bluetooth
- Yes
- Built-in processor
- Yes
- Internal memory
- 3000 MB
- Number of simultaneously connected devices (max)
- 300
- Processor architecture
- ARM Cortex-A53
- Processor cores
- 4
- Processor frequency
- 1500 MHz
- AC input frequency
- 50/60 Hz
- AC input voltage
- 100 - 240 V
- Power consumption (typical)
- 26 W
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet (PoE) voltage
- 57 V
- Power source type
- AC,PoE
- Power supply
- 50 W
- Operating relative humidity (H-H)
- 5 - 95 %
- Operating temperature (T-T)
- -10 - 40 °C
- Depth
- 110 mm
- Height
- 184.1 mm
- Weight
- 1100 g
- Width
- 110 mm
- Number of products included
- 1 pc(s)
- Model
- Dream Router 7
- Model name
- Dream 7
- Units per Shipping Box
- 6
- Unit Calculated Volume
- 0.0122 cubm
- Unit Calculated Weight
- 1.96 kg
