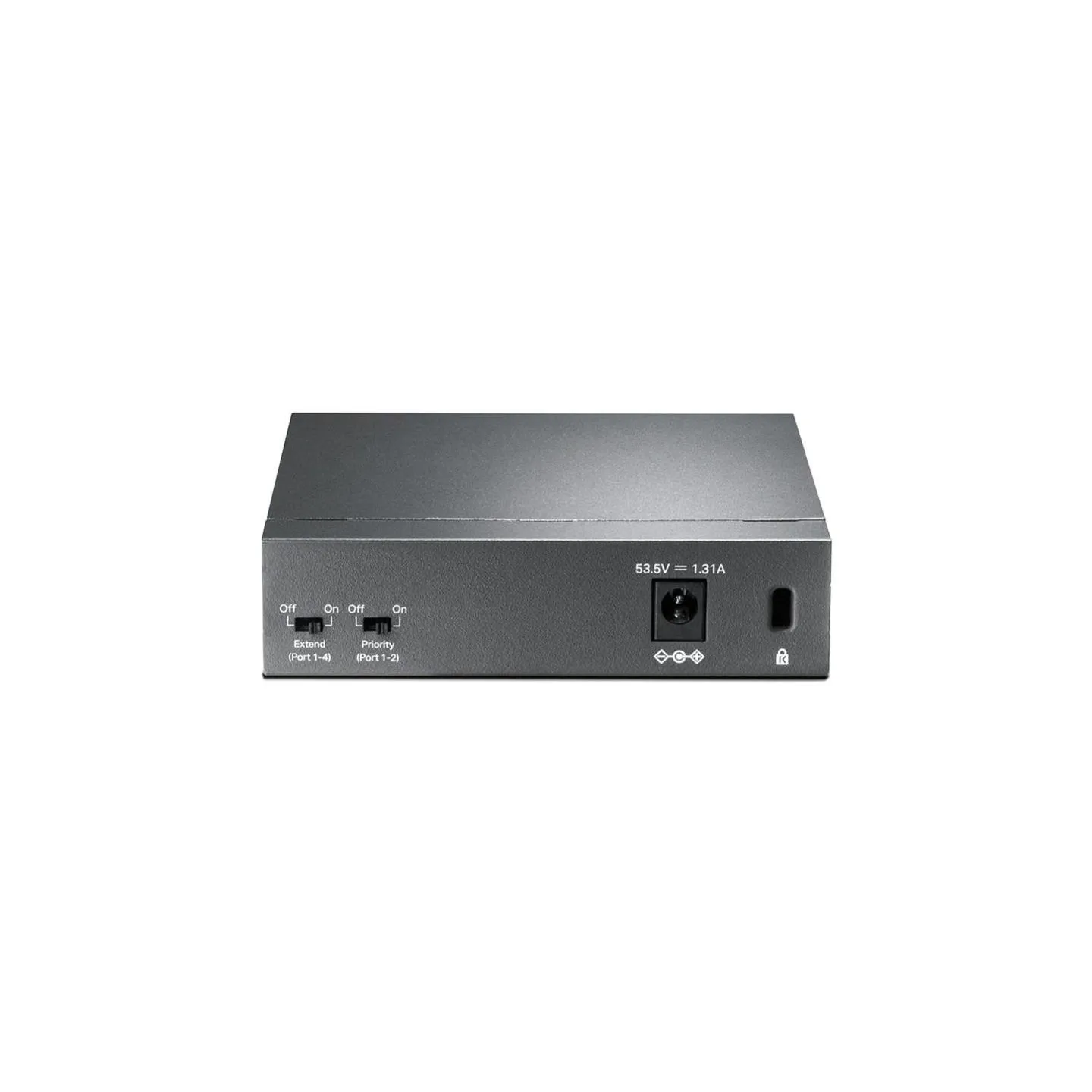

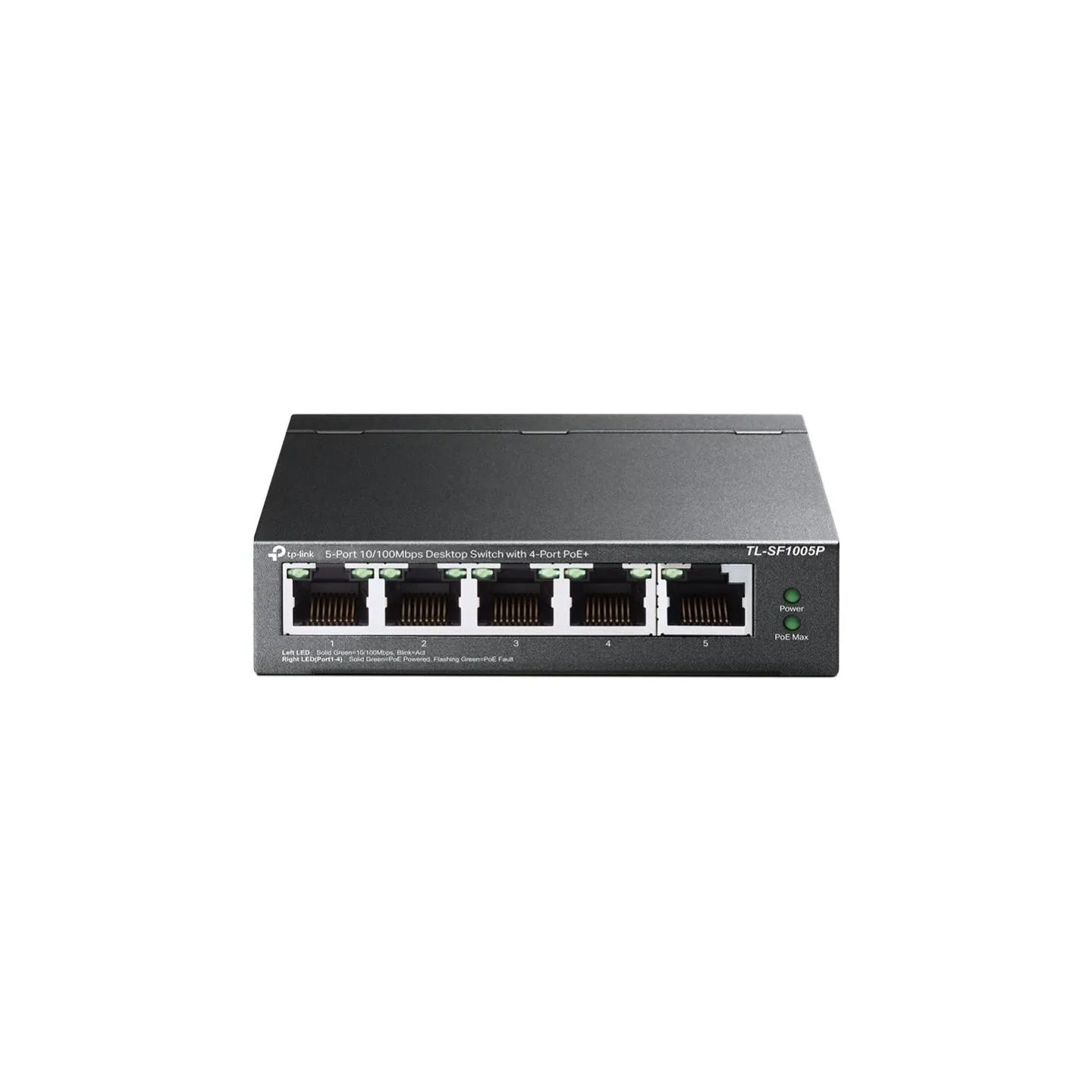

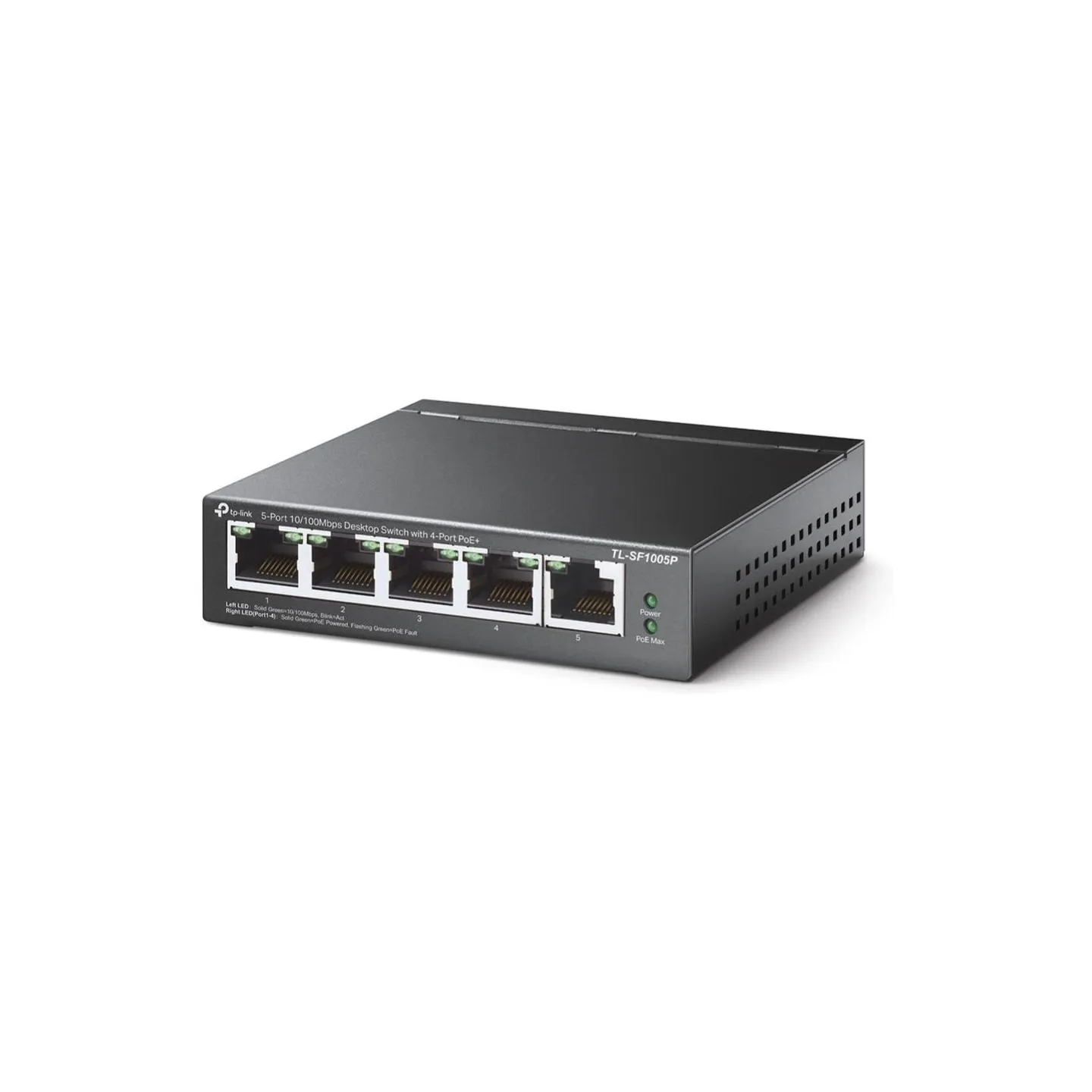

Tp-Link Switch|TP-LINK|Desktop/pedestal|5x10Base-T / 100Base-TX|PoE ports 4|TL-SF1005P
PoE Switches for Your Ultra Convenience
5-Port 10/100Mbps Desktop Switch with 4-Port PoE
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 58W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
- 5 10/100Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 58W for all PoE ports
- Requires no configuration and installation
Manufacturer Website:
https://uk.tp-link.com/products/details/cat-42_TL-SF1005P.html
- Summary
- TP-Link 5-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries, Switching capacity: 1 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE)
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.12
- Unit Box Length
- 0.2
- Unit Box Width
- 0.13
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Fast Ethernet (10/100)
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Auto-negotiation
- Yes
- Cable types supported
- Cat3/Cat4/Cat5/Cat5e/Cat6
- Copper ethernet cabling technology
- 100BASE-T/100BASE-TX/10BASE-T
- Flow control support
- Yes
- Full duplex
- Yes
- Half duplex
- Yes
- MAC address auto-aging supported
- Yes
- MAC address auto-learning supported
- Yes
- Networking standards
- IEEE 802.3af/IEEE 802.3x
- Forwarding rate
- 0.744 Mpps
- Jumbo frames
- 2000
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Store-and-forward
- Yes
- Switching capacity
- 1 Gbit/s
- LED indicators
- Yes
- Product colour
- Black
- Rack mounting
- No
- Stackable
- No
- Fanless
- Yes
- Maximum cable length
- 100 m
- AC input frequency
- 50 Hz
- AC input voltage
- 220 V
- DC input voltage
- 53.5 V
- Input current
- 1.31 A
- Power consumption (max)
- 74 W
- Power source
- DC/PoE
- Power supply included
- No
- Power over Ethernet (PoE)
- Yes
- Power over Ethernet plus (PoE+) ports quantity
- 4
- Total Power over Ethernet (PoE) budget
- 67 W
- Heat dissipation
- 252.34 BTU/h
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- 0 - 40 °C
- Storage relative humidity (H-H)
- 5 - 90 %
- Storage temperature (T-T)
- -40 - 70 °C
- Depth
- 98 mm
- Height
- 25 mm
- Width
- 99.8 mm
- User guide
- Yes
- AC adapter included
- Yes
- Package depth
- 196 mm
- Package height
- 121 mm
- Package type
- Box
- Package weight
- 760 g
- Package width
- 131 mm
- Sustainability compliance
- Yes
- Compliance certificates
- CE/Federal Communications Commission (FCC)/RoHS
- Harmonized System (HS) code
- 85176990
- Units per Shipping Box
- 12
- Unit Calculated Volume
- 0.003844 cubm
- Unit Calculated Weight
- 0.842 kg
