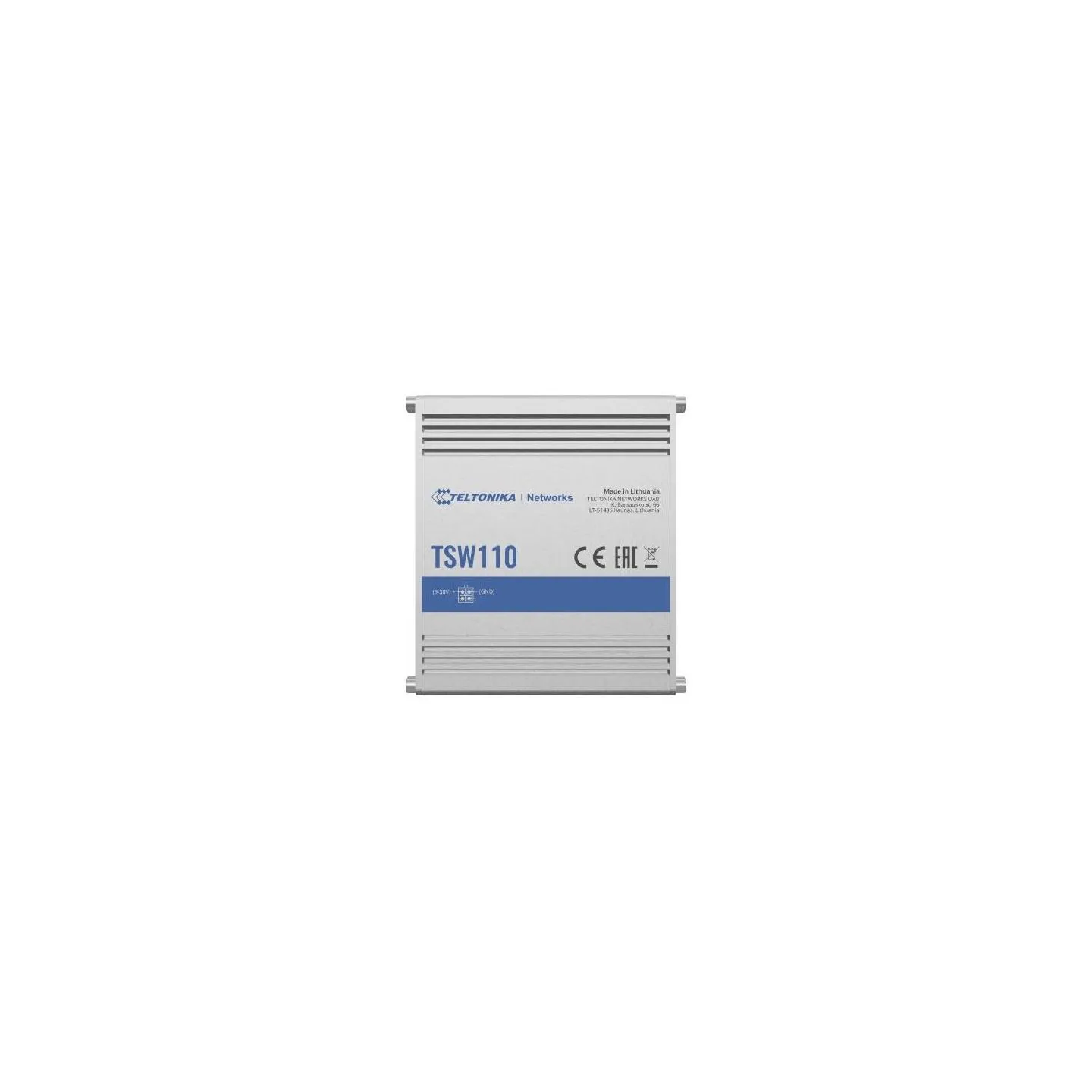

Teltonika Switch|TELTONIKA|TSW110000000|Switch type Unmanaged|Switch layer L2|5xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (1
Price:
€59.06
Tax included
Product Comments module (productcomments) must be installed!
Last items in stock
Share on
PLUG-N-PLAY
No additional configuration needed
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
STATUS LEDS
1 x Power, 10 x Ethernet
9-30 V
Wide range of supported power supply voltages
GIGABIT ETH
5 x Gigabit Ethernet with speeds up to 1000 Mbps
- TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100
- Possible to power up through the first LAN port
- It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution
- It offers a wide range of supported power supply voltages (9-30 V)
- Ideal for professional high bandwidth applications to provide reliable data connection
Manufacturer Website:
https://teltonika-networks.com/product/tsw110/
- Category Code
- SWI
- CnCode
- 85176200
- Unit Box Height
- 0.07
- Unit Box Length
- 0.175
- Unit Box Width
- 0.15
- Switch type
- Unmanaged
- Basic switching RJ-45 Ethernet ports quantity
- 5
- Basic switching RJ-45 Ethernet ports type
- Gigabit Ethernet (10/100/1000)
- 10G support
- No
- Auto MDI/MDI-X
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Networking standards
- IEEE 802.3/IEEE 802.3az/IEEE 802.3u
- Jumbo frames
- 9216
- Jumbo frames support
- Yes
- MAC address table
- 2000 entries
- Packet buffer memory
- 0.128 MB
- Switching capacity
- 10 Gbit/s
- DIN rail mounting
- Yes
- Housing material
- Aluminium
- International Protection (IP) code
- IP30
- LED indicators
- Yes
- Product colour
- Blue/Grey
- AC input voltage
- 100 - 240 V
- DC input voltage
- 30 V
- Power consumption (typical)
- 1.8 W
- Power supply included
- Yes
- Power over Ethernet (PoE)
- Yes
- Operating relative humidity (H-H)
- 10 - 90 %
- Operating temperature (T-T)
- -40 - 75 °C
- Depth
- 85 mm
- Height
- 30 mm
- Weight
- 227 g
- Width
- 100 mm
- Quick start guide
- Yes
- Package type
- Box
- Model
- TSW110
- Model name
- TSW110000000
- Units per Shipping Box
- 1
- Unit Calculated Volume
- 0.001837 cubm
- Unit Calculated Weight
- 0.393 kg
